NORM.INV Function in Excel

If you know a probability and need the matching value from a normal distribution, the NORM.INV function can calculate that cutoff.

In this article, I will show you how to find percentiles, service-level targets, central ranges, and sample-based estimates.

In Excel 2021 and later, you can feed NORM.INV a range of probabilities, and the results will spill into neighboring cells.

NORM.INV Function Syntax in Excel

The NORM.INV function uses the following syntax:

=NORM.INV(probability,mean,standard_dev)
  • probability is required. It must be greater than 0 and less than 1.
  • mean is required. It is the arithmetic mean of the distribution.
  • standard_dev is required. It is the positive standard deviation of the distribution.

When to Use NORM.INV Function

  • Convert a percentile or cumulative probability into a value from a normal distribution.
  • Set an operational threshold for a target service level.
  • Find the lower and upper bounds of a central normal range.
  • Convert a standard normal z score into a value with a specified mean and standard deviation.
  • Estimate a percentile using a sample mean and sample standard deviation.

Example 1: Spill Several Service-Time Percentiles

Let’s start with several service-time percentiles.

Below are the 50th, 80th, 90th, and 95th percentiles. The response-time model has a mean of 24 minutes and standard deviation of 6 minutes.

Dataset for NORM.INV example 1

I want the response-time cutoff for each listed percentile.

Enter this formula in cell B2:

=NORM.INV(A2:A5,$E$1,$E$2)

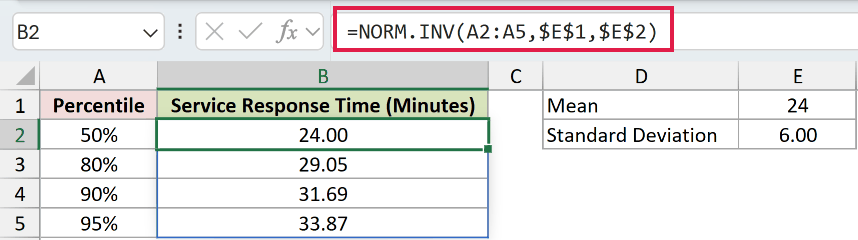

=NORM.INV(A2:A5,$E$1,$E$2) in B2

The probability argument is A2:A5, so Excel evaluates all four percentiles. The absolute references keep the mean and standard deviation fixed.

The results are 24.00, 29.05, 31.69, and 33.87 minutes. For example, the model places 90% of response times at or below 31.69 minutes.

Pro Tip: The spill range B2:B5 must be empty before you enter the formula. A blocked output cell causes a #SPILL! error.

Example 2: Stock for a Target Service Level

NORM.INV can turn a service-level target into a demand threshold.

Below is a 99% target service level, a mean weekly demand of 150 units, and a standard deviation of 20 units.

Dataset for NORM.INV example 2

I want the demand level that covers 99% of weeks under this normal model.

Enter this formula in cell B4:

=NORM.INV(B1,B2,B3)

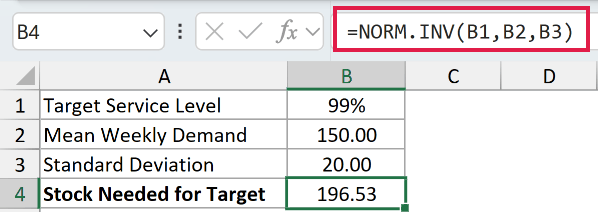

=NORM.INV(B1,B2,B3) in B4

NORM.INV finds the x value whose cumulative probability is 99%. The result is 196.53 units.

If stock must be a whole number, round that threshold up to 197 units. Rounding down would move the target below the 99th-percentile estimate.

This calculation assumes weekly demand follows the stated normal distribution. A full reorder-point model may also need lead time and its variability.

Example 3: Build a Central 90% Range

A central 90% range leaves 5% in each tail of the distribution.

Below are tail probabilities of 5% and 95%, with a process mean of 50 and standard deviation of 8.

Dataset for NORM.INV example 3

I want the lower and upper process readings that contain the middle 90% of the model.

Enter this formula in cell B2:

=NORM.INV(A2:A3,$E$1,$E$2)

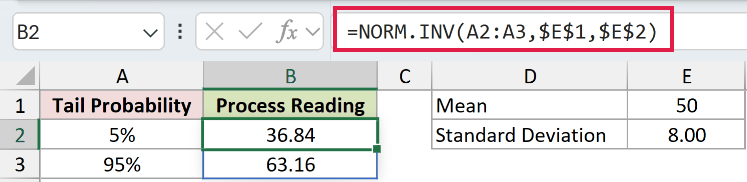

=NORM.INV(A2:A3,$E$1,$E$2) in B2

The formula spills 36.84 for the 5th percentile and 63.16 for the 95th percentile.

Under the normal model, 90% of readings fall between those two values. The remaining 10% is split equally between the two tails.

Example 4: Match NORM.INV to NORM.S.INV

NORM.S.INV is the direct function for the standard normal distribution.

Below is a probability of 97.5%, along with a mean of 10 and standard deviation of 2.

Dataset for NORM.INV example 4

I want to confirm that scaling the standard normal result gives the same x value as NORM.INV.

First, enter this formula in cell B2:

=NORM.S.INV(B1)

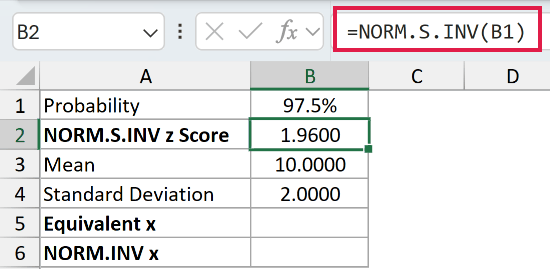

=NORM.S.INV(B1) in B2

NORM.S.INV returns a z score of 1.9600.

Next, enter this scaling formula in cell B5:

=B3+B2*B4

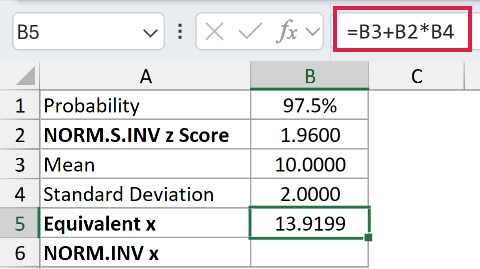

=B3+B2*B4 in B5

The formula multiplies the z score by the standard deviation and adds the mean. The result is 13.9199.

Finally, enter this NORM.INV formula in cell B6:

=NORM.INV(B1,B3,B4)

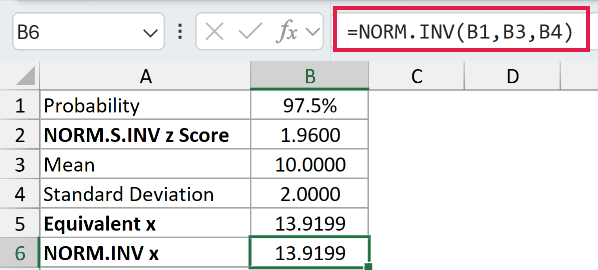

=NORM.INV(B1,B3,B4) in B6

NORM.INV returns the same 13.9199 result. It performs the standardization and scaling in one function.

Example 5: Estimate a Percentile From a Sample

You can estimate the distribution parameters directly from sample data.

Below are turnaround times for eight work orders. Cell B11 contains the 90th percentile.

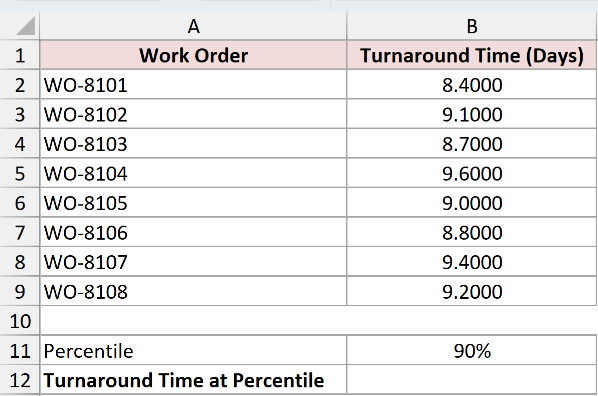

Dataset for NORM.INV example 5

I want to estimate the 90th-percentile turnaround time under a fitted normal model.

Enter this formula in cell B12:

=NORM.INV(B11,AVERAGE(B2:B9),STDEV.S(B2:B9))

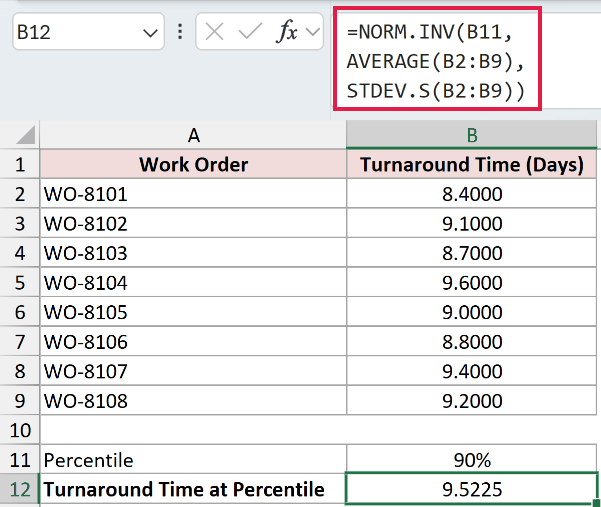

=NORM.INV(B11,AVERAGE(B2:B9),STDEV.S(B2:B9)) in B12

AVERAGE calculates a sample mean of 9.0250 days. STDEV.S calculates a sample standard deviation of about 0.3882 days.

NORM.INV uses those estimates and returns 9.5225 days for the 90th percentile.

This is a smooth model estimate. If the sample is not reasonably normal, the result may not describe the real turnaround-time distribution well.

To find the percentile directly from the observed values, use the PERCENTILE.INC function with =PERCENTILE.INC(B2:B9,B11). That empirical result can differ from the normal-model estimate.

Tips & Common Mistakes

  • Keep probability strictly between 0 and 1. A value of 0 or 1 causes a #NUM! error.
  • Keep standard_dev greater than zero. A zero or negative value also causes a #NUM! error.
  • Use NORM.S.INV when you need a z score from the standard normal distribution.
  • Use NORM.DIST for the reverse question: supply x and return its cumulative probability or density.
  • In Excel 2019 or earlier, range-based NORM.INV formulas do not spill. Enter one formula per row or use a legacy array formula.
  • Treat NORM.INV results as model-based percentiles. Use PERCENTILE.INC when you want a percentile calculated from the observed values themselves.

I covered spilled percentiles, service-level targets, central ranges, standard normal conversions, and estimates from sample data.

I hope you found this article helpful.
